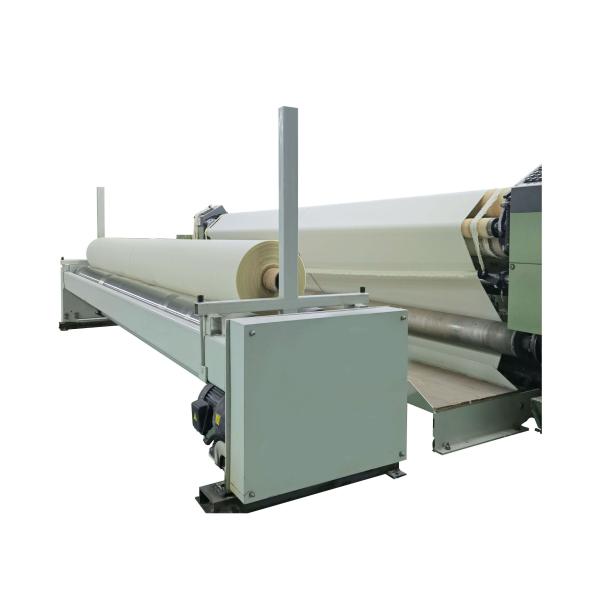

Electric Motor Winding Machine Loom Winding Machine

Main Technical Features

Technical Specifications
* Speed:Synchronized with Weaving Machines
* Fabric Width:1.2-4.5meters
* Max winding diameter:1500mm (standard:1200mm)
* Edge-alignment Error:≤5mm
* Dimension(L*W*H):As per customer's fabric width
* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)
* Frequency converter control electrical mode
* Automatic winding, stop, manual reversal and other operation functions

machine structure

* The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.
* Non-slip foot pedal
* Semi-automatic doffing device(pneumatic roll ejection device) or Manual doffing device(Manual roll ejection
device)
* Option - Electric press roller lifting device designed for tighter cloth coiling
* Option - Man-machine interface operation mode
* Option - Inspection tablewith LED
* Option - Accurate length measuring giving accuracy of ± 0.01%
* Option - Automatic fabric selvedge shifter for thick selvedge.

Cloth Roll Winder for Doffing Device
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Warranty	The core components are guaranteed for 1 year
Applicable Industries	Weaving Factory, Textile Factory
Usage	Weaving Loom Machine
Power	0.25kw,50 Hz
Voltage	According to actual condition
Max winding diameter	1500mm (standard:1200mm)
Speed	Synchronized with Weaving Machines
Item	Fabric Roll Winder

Product Classification

Company Profile

Certifications

Exhibition

Manufacturing Technique

Product packaging

FAQ

Our company is professional in manufacturing weaving Loom Beam, Warp Beam, Cloth Fabric Roll Winder, Cloth Roller, Warp Beam Lift Carrier trolley, Warp Beam Transport Trolley, etc. They are widely applied in rapier, jacquard, air-jet, water-jet machine of Sulzer, Toyota, Dornier, Tsudakoma, Picanol, Somet, Benninger, muller, and etc, We have the ability to customize for any leading loom or warping machine brand in the world at favorable factory price!
