Jiangsu Horizontal Fabric Motor Winding machine for Weaving

Ask Lasest Price
Brand Name :	Xianchuang
Supply Ability :	100 Piece/Pieces per Month
Price :	$2,000.00 - $3,000.00/Pieces
Delivery Time :	4-7 Weeks

Add to Cart

Product Details
Company Profile

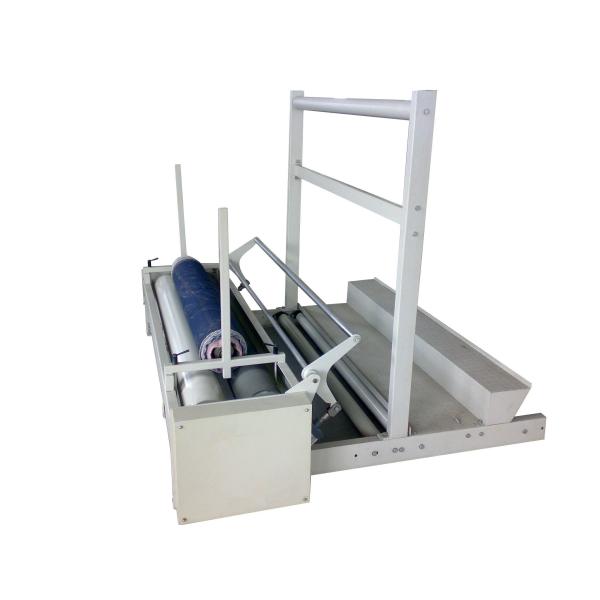

Jiangsu Horizontal Fabric Motor Winding machine for Weaving

Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water
jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.
1.Less fabric waste and increase efficiency
2.Fast and easily handled, one operator can take care of multiple machines
3.High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.
4.Variable working width is possible

Main Technical Features

Technical Specifications
* Speed:Synchronized with Weaving Machines
* Fabric Width:1.2-4.5meters
* Max winding diameter:1500mm (standard:1200mm)
* Edge-alignment Error:≤5mm
* Dimension(L*W*H):As per customer's fabric width
* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)
* Frequency converter control electrical mode
* Automatic winding, stop, manual reversal and other operation functions

machine structure
* The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.
* Non-slip foot pedal * Option - Inspection tablewith LED * Option - Man-machine interface operation mode * Option - Accurate length measuring giving accuracy of ± 0.01% * Option - Semi-automatic doffing device(pneumatic roll ejection device)

* Option - Manual doffing device(Manual roll ejection device) * Option - Automatic fabric selvedge shifter for thick selvedge.
* Option - Electric press roller lifting device designed for tighter cloth coiling

Horizontal Cloth Fabric Roll Winding machine for Weaving
Place of Origin	Jiangsu, China
Brand Name	Xianchuang
Warranty	The core components are guaranteed for 1 year
Applicable Industries	Weaving Factory, Textile Factory
Usage	Weaving Loom Machine
Power	0.25kw,50 Hz
Voltage	According to actual condition
Max winding diameter	1500mm (standard:1200mm)
Speed	Synchronized with Weaving Machines
Item	Fabric Roll Winder
